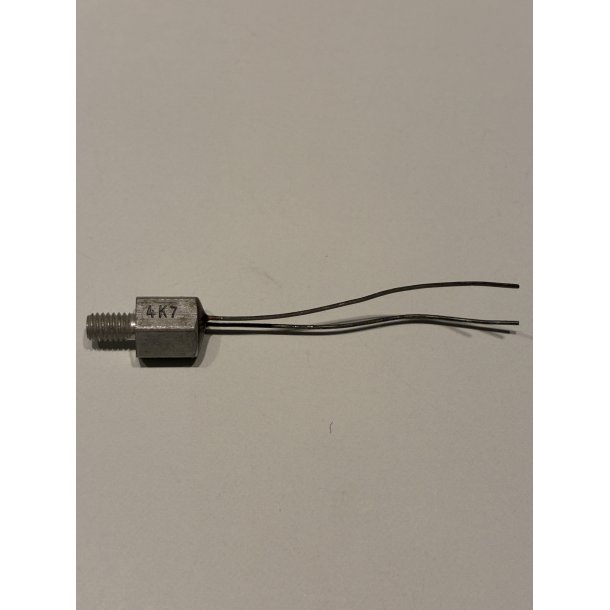

1 stk. 4,7KOhm NTC-modstand med M4 gevind. Typisk anvendt i udgangsforstærkere med Germanium udgangs-transistorer som AC127/128, AC187/188, AD161/162 og AD139.
R-Value at 25°C: 4,7k-Ohm
Temperature coefficient 25°C: -4.9%/K
Operating temperature (Pmax): 0°C to +55°C
Dissipation factor: 25mW/K (measured with screw mounted on an aluminium heatsink of 1000mm2 x 1.5mm)
Maximum dissipation: 0.5W
Dielectric withstanding voltage: 100Vrms (between terminals and screw)
Insulation resistence: 100M-Ohm (between terminals and screw at 100VDC)
R-Tolerance: ±5% at 25°C
